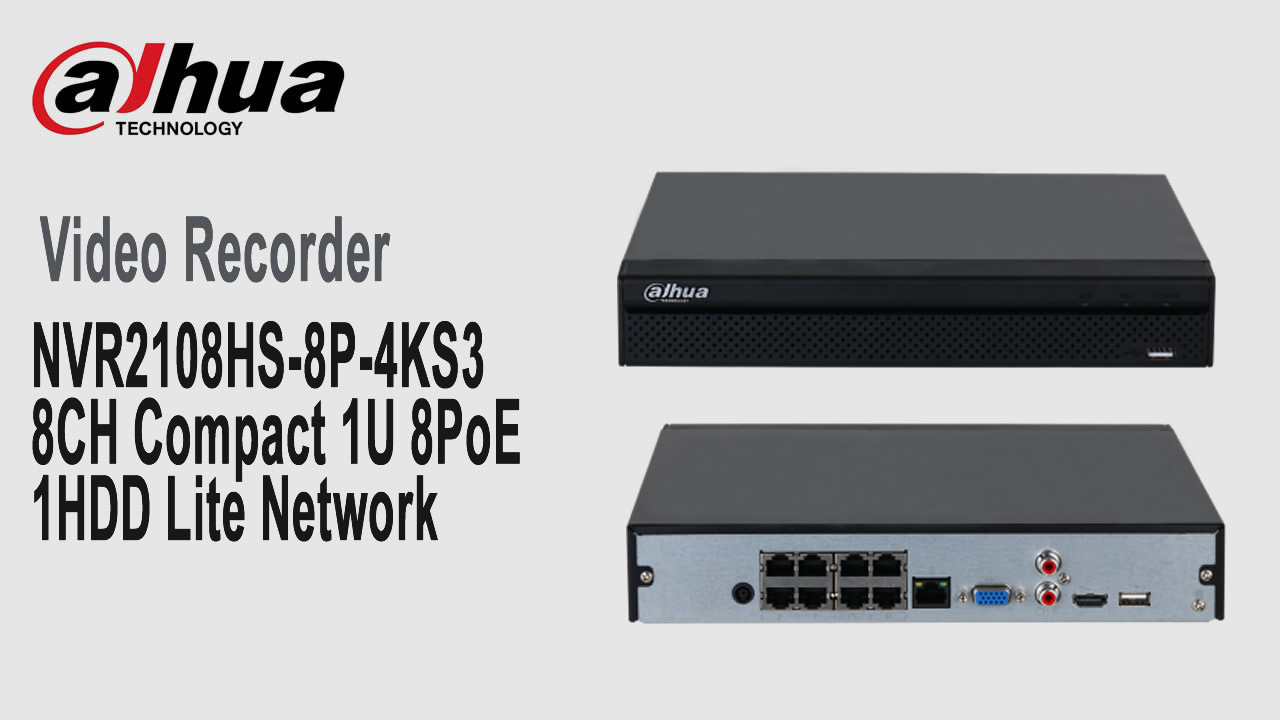

DAHUA NVR2108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
Código: 5138
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD.
> AI by Camera supports perimeter protection and SMD.
> Supports one-click arming and disarming.https://ekipos.com/bolivia/?id=5138
-
selector-pcimg
Selector de productos
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web, Local GUI
AI
AI by Recorder
SMD
AI by Camera
Perimeter protection; SMD
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)
All channels (4 targets/s)
SMD Plus
SMD Plus by Recorder
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera
All channels (8 targets/s)
Audio and Video
Access Channel
8 channels
Network Bandwidth
AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing
AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Resolution
12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability
AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps
Video Output
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
1/4/8/9
Third-party Camera Access
ONVIF
Compression Standard
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression
G.711a; G.711u; PCM; G726;
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser
Chrome; IE; Safari; Edge; Firefox
Recording Playback
Multi-channel Playback
Up to 8 channels
Record Mode
General, motion detection; intelligent; alarm
Backup Method
USB device and network
Playback Mode
Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm
Motion detection; camera external alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm
Perimeter protection; SMD Plus
Alarm Linkage
Recording; snapshot; buzzer; log; preset; email; tour
Port
Audio Input
1-channel RCA
Audio Output
1-channel RCA
Alarm Input
NA (2 channels are optional)
Alarm Output
NA (1-channel 12 V 1 A output is optional)
Disk Interface
1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port
8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply
53 VDC, 1.81 A
Power Consumption
Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W
Net Weight
0.89 kg (1.96 lb)
Gross Weight
2.05 kg (4.52 lb)
Product Dimensions
260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions
374.0 mm × 119.0 mm × 311.0 mm(14.72" × 4.69" × 12.24" )(W × D × H)
Operating Temperature
–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–93% (RH), non-condensing -
DAHUA NVR2108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder
