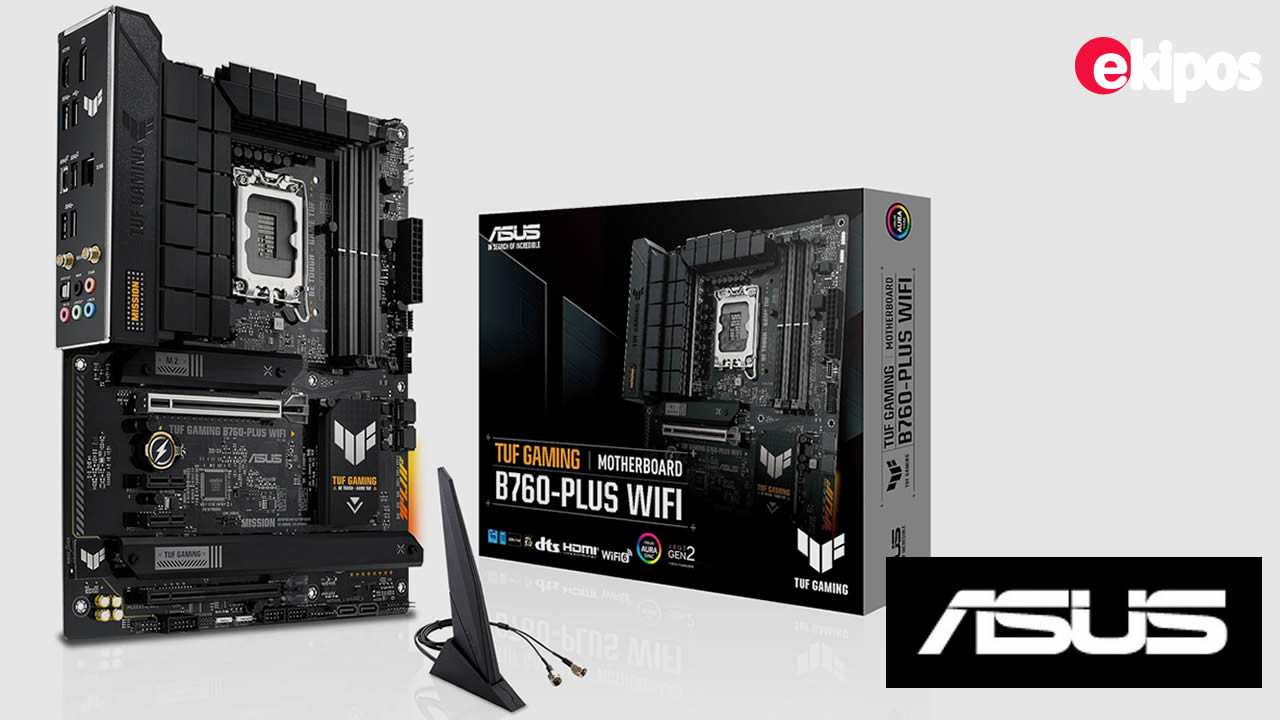

ASUS TUF GAMING B760-PLUS WIFI

ASUS TUF GAMING B760-PLUS WIFI Intel B760 LGA 1700 ATX placa base, lista para CPU Intel® Core de 14ª, 13ª y 12ª generación, 12+1+1 etapas, PCIe 5.0, 3x M.2, DDR5, 2.5G, USB 3.2 Type-C®, Thunderbolt
Código: 4991 | Garantía:12 meses | PB:kg. 1.00
INTEL |

Disponible

Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.

26 8 Compartir

+ ASUS | + Placas madre (26) | Partes de Estaciones de Trabajo | Ultimos

« Anterior Producto Siguiente »

Placas madre | ASUS TUF GAMING B760-PLUS WIFI | Ekipos | Celular: 60587770
ASUS TUF GAMING B760-PLUS WIFI Intel B760 LGA 1700 ATX placa base, lista para CPU Intel® Core de 14ª, 13ª y 12ª generación, 12+1+1 etapas, PCIe 5.0, 3x M.2, DDR5, 2.5G, USB 3.2 Type-C®, Thunderbolt
Código: 4991
Marca ASUS
Zócalo de CPU LGA 1700
Dispositivos compatibles Ordenador personal
Tecnología de memoria RAM DDR5
Procesadores compatibles Intel Celeron, Intel Pentium Oro
Tipo de set de chips Intel B760
Velocidad de memoria del reloj 2133 MHz
Plataforma Windows 10
Nombre del modelo TUF GAMING B760-PLUS WIFI
Modelo de CPU Pentium

Socket Intel LGA 1700: listo para procesadores Intel Core de 13ª generación y procesadores Intel Core, Pentium Gold y Celeron de 12ª generación
Solución de potencia mejorada: 12+1 etapas de potencia DrMOS, PCB de seis capas, 8+4 enchufes ProCool, componentes TUF de grado militar y VRM Digi+ para una máxima durabilidad
Enfriamiento integral: disipadores térmicos VRM ampliados, disipadores térmicos M.2, disipador térmico PCH, cabezales de ventilador híbridos y Fan Xpert 4
Última conectividad: ranura PCIe 5.0, ranuras PCIe 4.0 M.2, USB 3.2 Gen 2x2 Tipo-C posterior, cabecera del panel frontal para USB 3.2 Gen 2 Tipo-C y soporte de encabezado Thunderbolt (USB4)
Hecho para juegos en línea: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuar
Cancelación de ruido de IA bidireccional: reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.

ekipos.com
Model
TUF GAMING B760M-PLUS WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen
Processors, Intel® Core™ 12th Gen, Pentium® Gold and
Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory

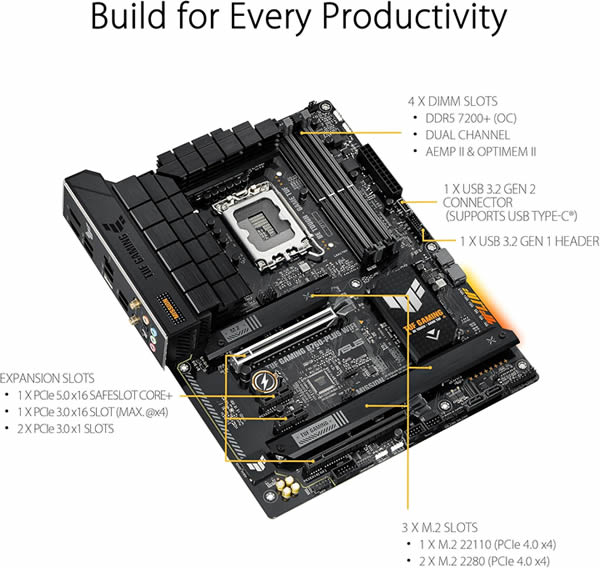

4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 14th& 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 14th &13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "

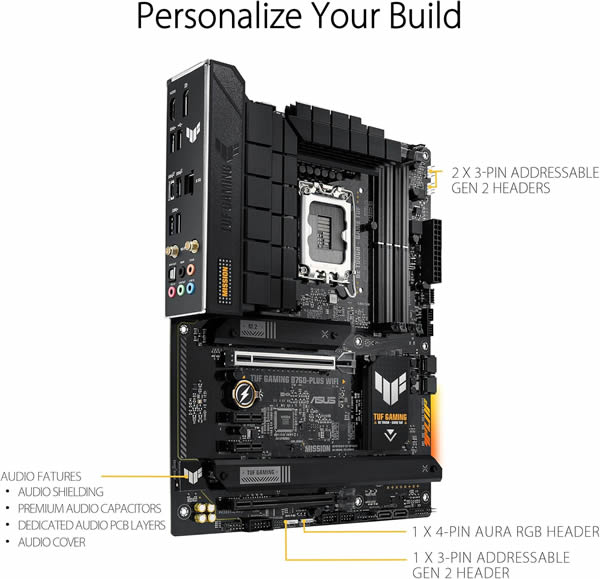

Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

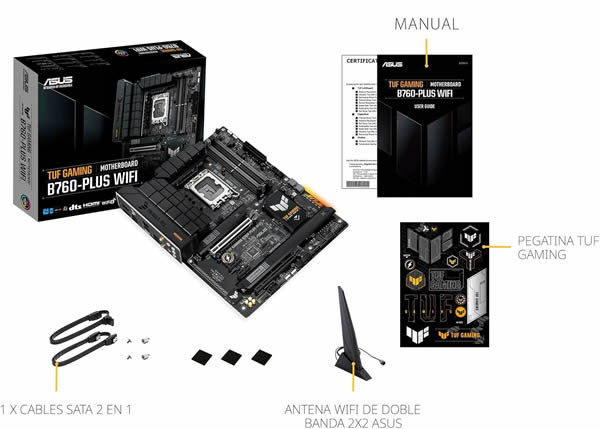

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TUF Gaming sticker
Documentation
1 x TUF Certification card
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
