Tenda TEG1050F

TEG1050F 48GE+2SFP Ethernet Switch
Código: 4163 | Garantía:12 meses | PB:kg. 1.00

Disponible

Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.

Tenda TEG1050F

111980    7457     Compartir

+ Tenda | + Switchs (23) | Redes de datos | Ultimos

WhatsApp

  • Switchs | Tenda TEG1050F | Ekipos | Celular: 60587770

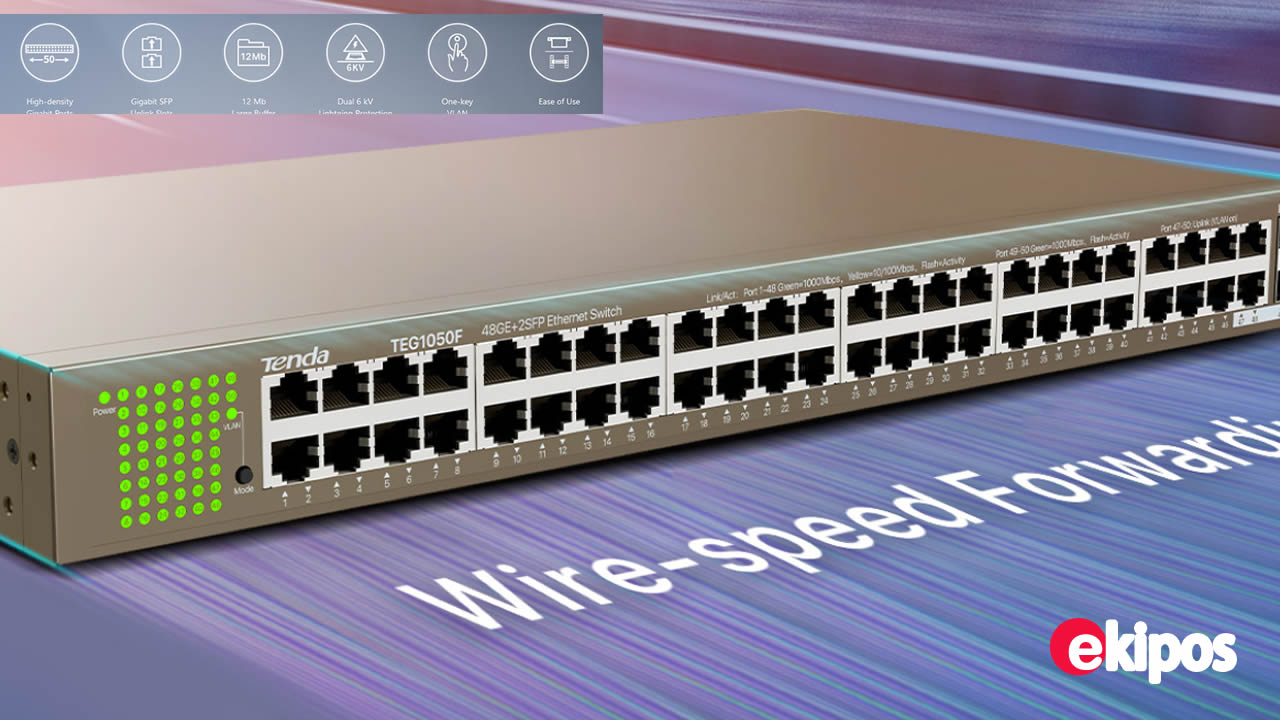

    TEG1050F 48GE+2SFP Ethernet Switch

    Código: 4163

    Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with Tendas SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

    ekipos.com


  • Network standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
    LED Indicator
    1* Power,50* Link/Act,1*VLAN
    Interfaces
    48 puertos Ethernet 10/100/1000 Base-T (Auto MDI / MDIX)
    2 puertos SFP 1000 Base-X (independientes)
    Transmission media
    Recomendado: CAT5 / 5e UTP o mejor
    Fan quantity
    N/A
    Dimension
    440.0mmx240.0mmx44.0mm
    Material
    Metal
    Level of protection
    Protección contra rayos para puertos de enlace ascendente: 6KV
    Protección contra rayos para energía: 6KV
    ESD:
    Descarga de aire: ± 10kV
    Descarga de contacto: ± 8kV
    Forwarding mode
    almacenamiento y reenvio
    Switch capacity
    100Gbps
    Packet forwarding rate
    74.4Mpps
    Buffer
    12Mb
    MAC address table
    16K
    Jombo frame
    12K
    Power
    Entrada: 100 - 240V CA 50 / 60Hz
    Salida: 12V 4A
    Power consumption
    Max:<48W
    Mounting
    Montaje en escritorio: soporte
    Montaje en pared: soporte
    Montaje en rack: soporte
    Environment
    Temperatura de funcionamiento: 0 ° C - 45 ℃
    Temperatura de almacenamiento: -40 ° C - 70 ° C
    Humidi de funcionamiento
    Certification
    CE, FCC, RoHS
    Software
    Protocols
    CDMA/CD
    MAC address learning
    Autoaprendizaje y envejecimiento automático
    Funtions
    VLAN de una tecla (en este modo, los puertos 1 a 46 no pueden comunicarse entre sí, pero pueden comunicarse con los puertos 47 a 50).

  • TEG1050F 48GE+2SFP Ethernet Switch


    TEG1050F 48GE+2SFP Ethernet Switch


    TEG1050F 48GE+2SFP Ethernet Switch


    TEG1050F 48GE+2SFP Ethernet Switch
